H07V-R provides moderate flexibility for permanent conduit, building and panel circuits without using a fine-stranded conductor.

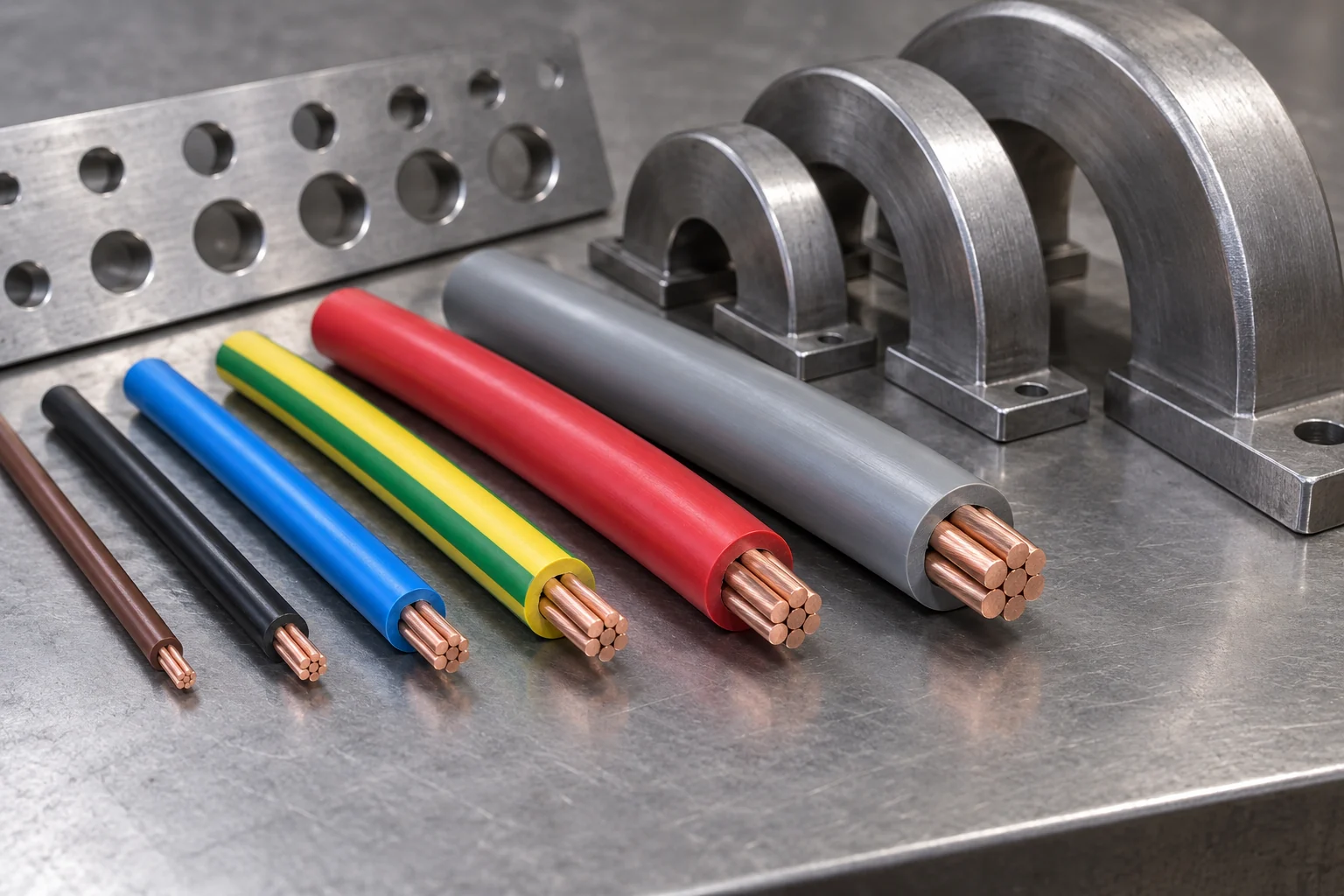

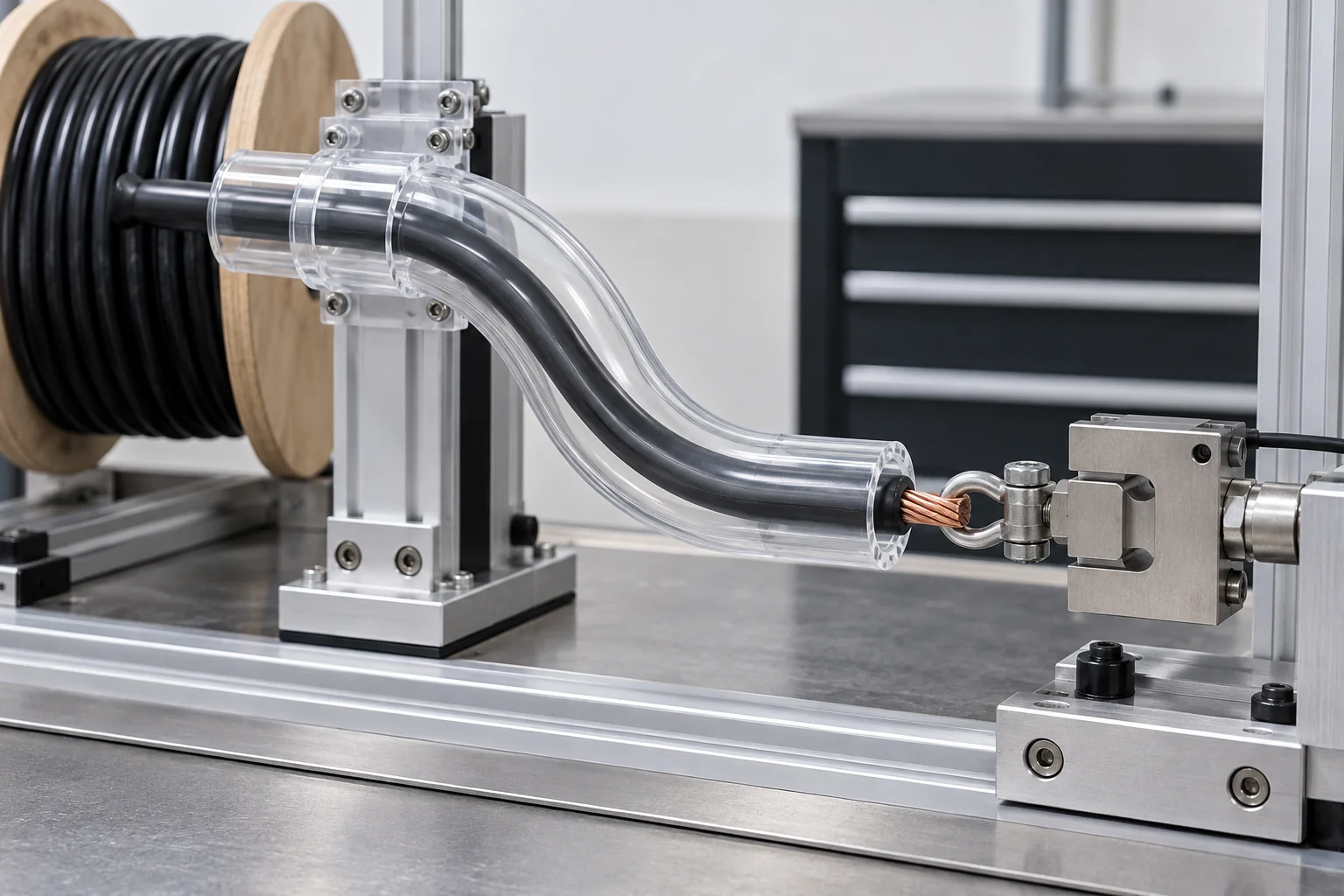

At larger cross-sections or on routes with several bends, a solid conductor can become difficult to pull and form. H07V-R uses Class 2 stranded copper to improve installation handling while remaining a fixed 450/750 V building wire. This helps installers route permanent circuits through protected pathways without moving to a fine-stranded flexible conductor.

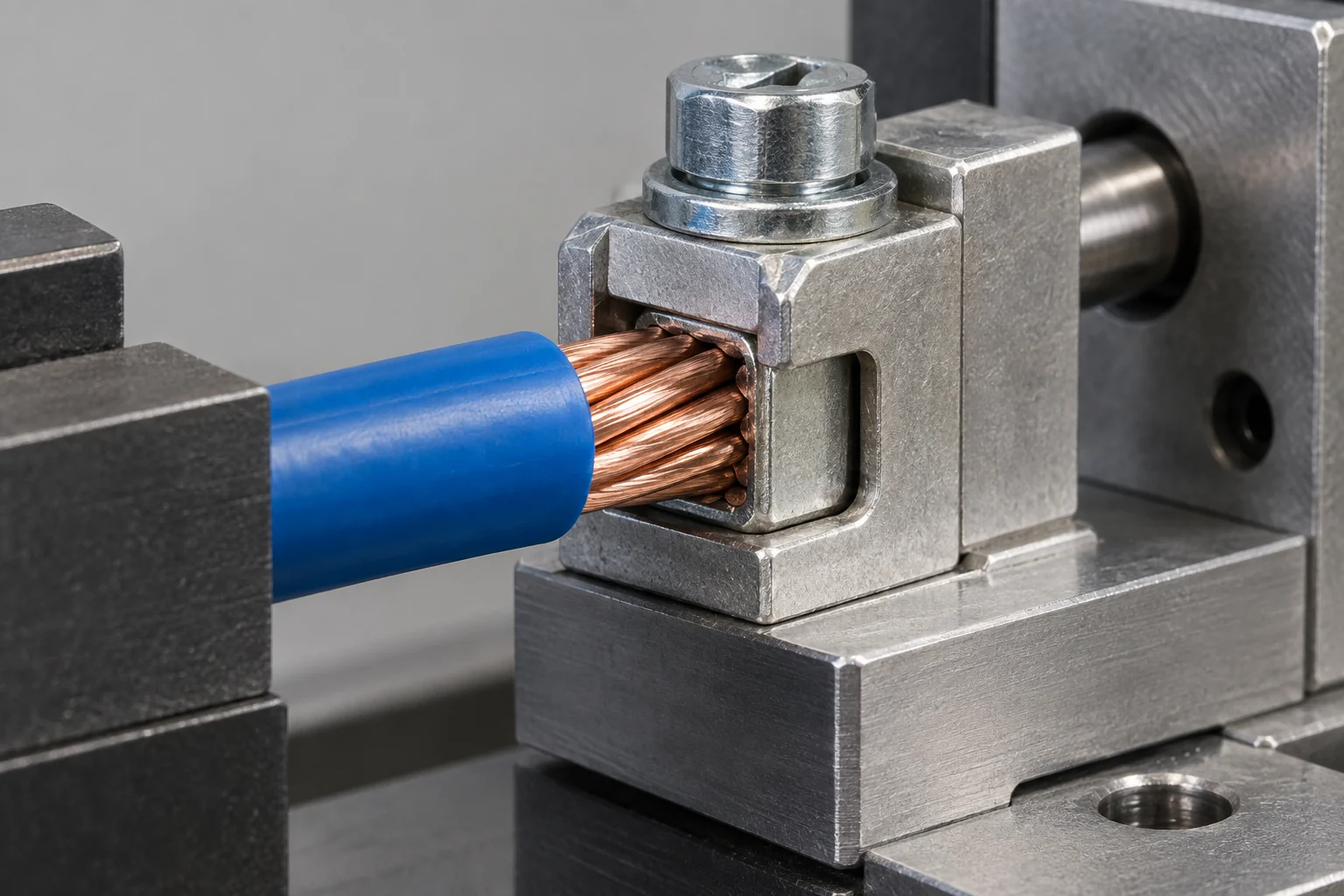

H07V-R combines easier bending with a conductor construction intended for permanent terminations. The Class 2 strands remain coarser than H07V-K, making the conductor end easier to prepare and manage in terminals suitable for stranded conductors. This gives distribution-board and equipment connections a practical balance between installation flexibility and stable fixed connection.
As conductor size increases, the handling difference between solid and stranded construction becomes more important. H07V-R extends fixed 450/750 V wiring into larger cross-sections with a conductor that is more practical to route and position during installation. It is therefore useful for higher-current fixed circuits where H07V-U would become unnecessarily difficult to form.

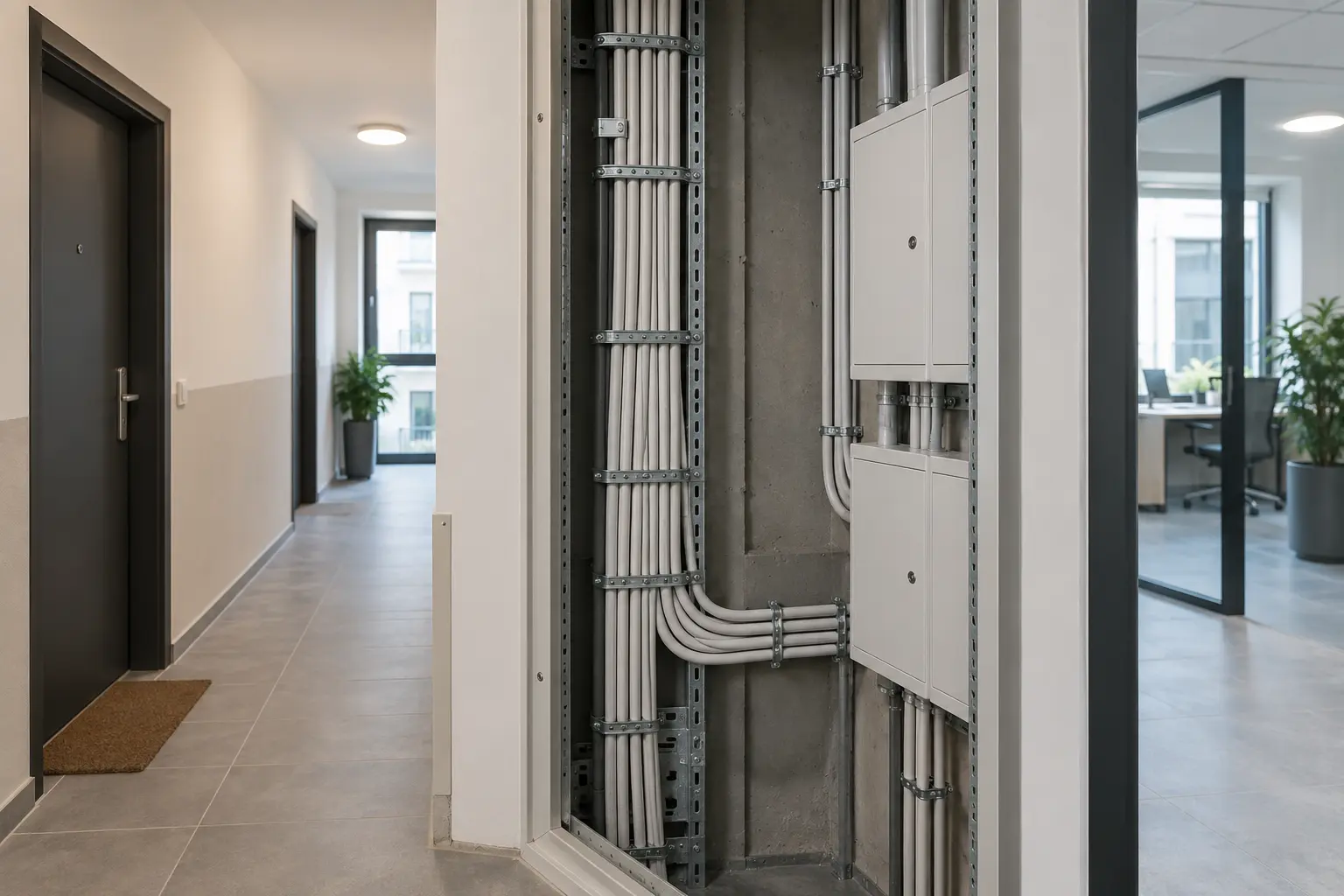

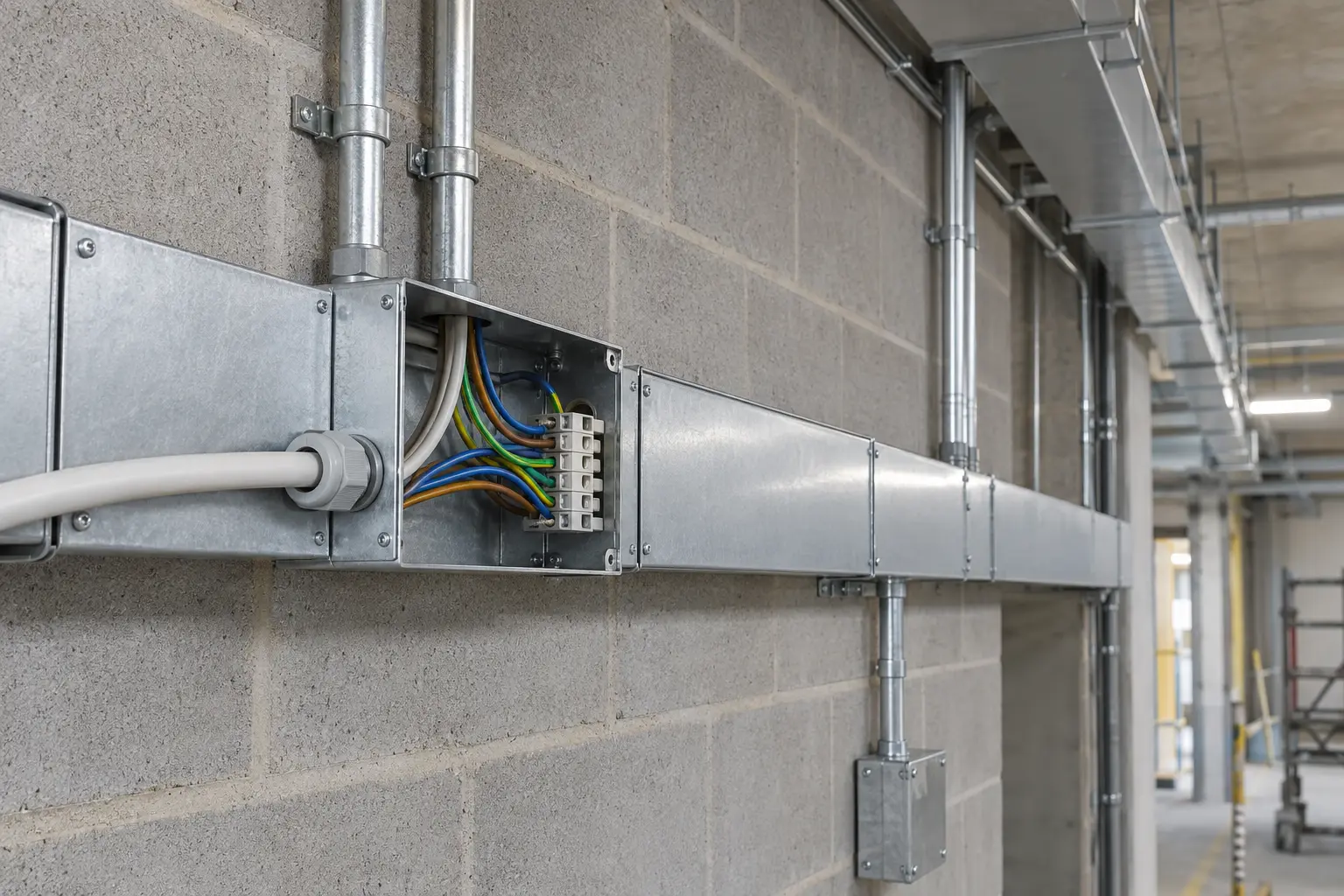

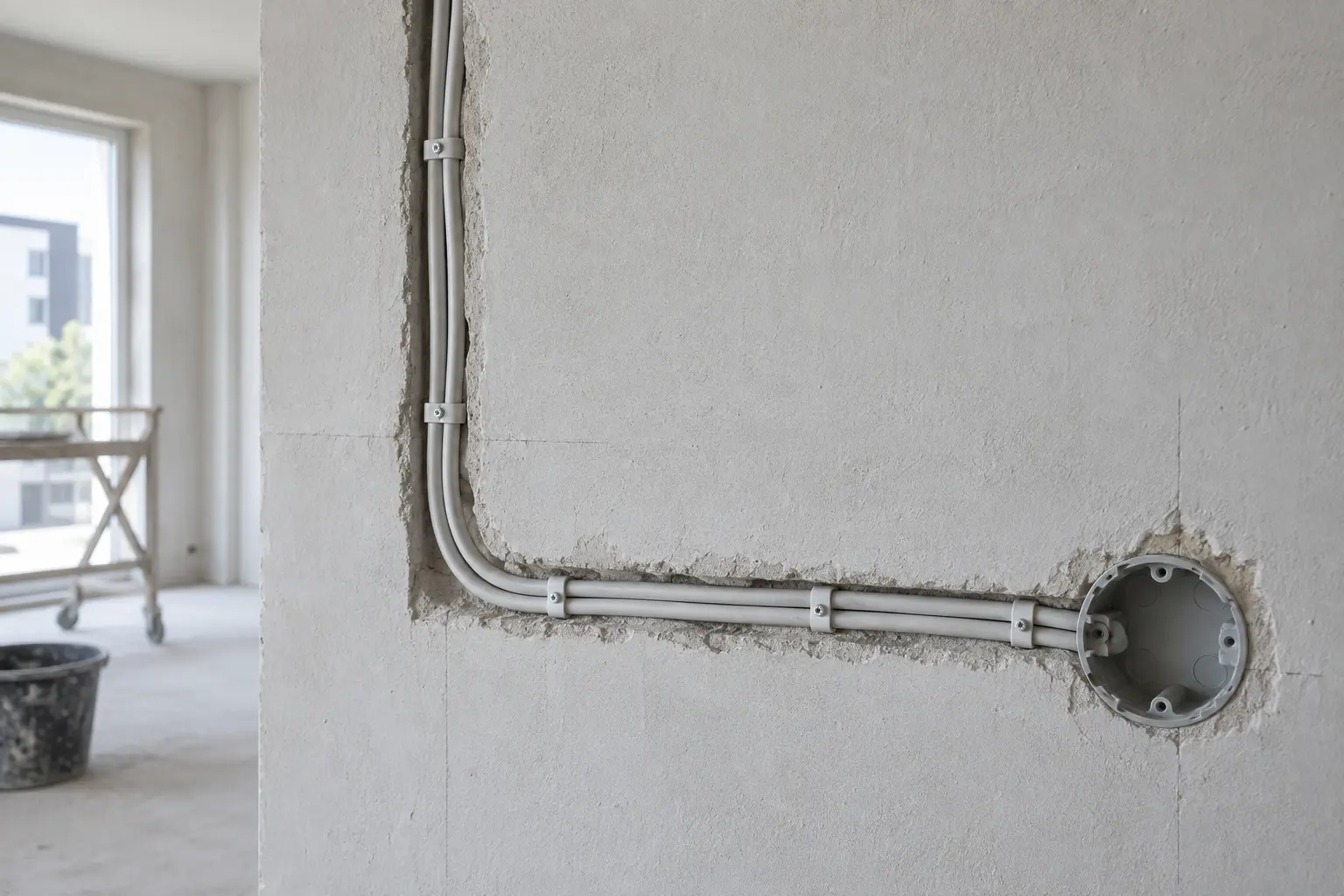

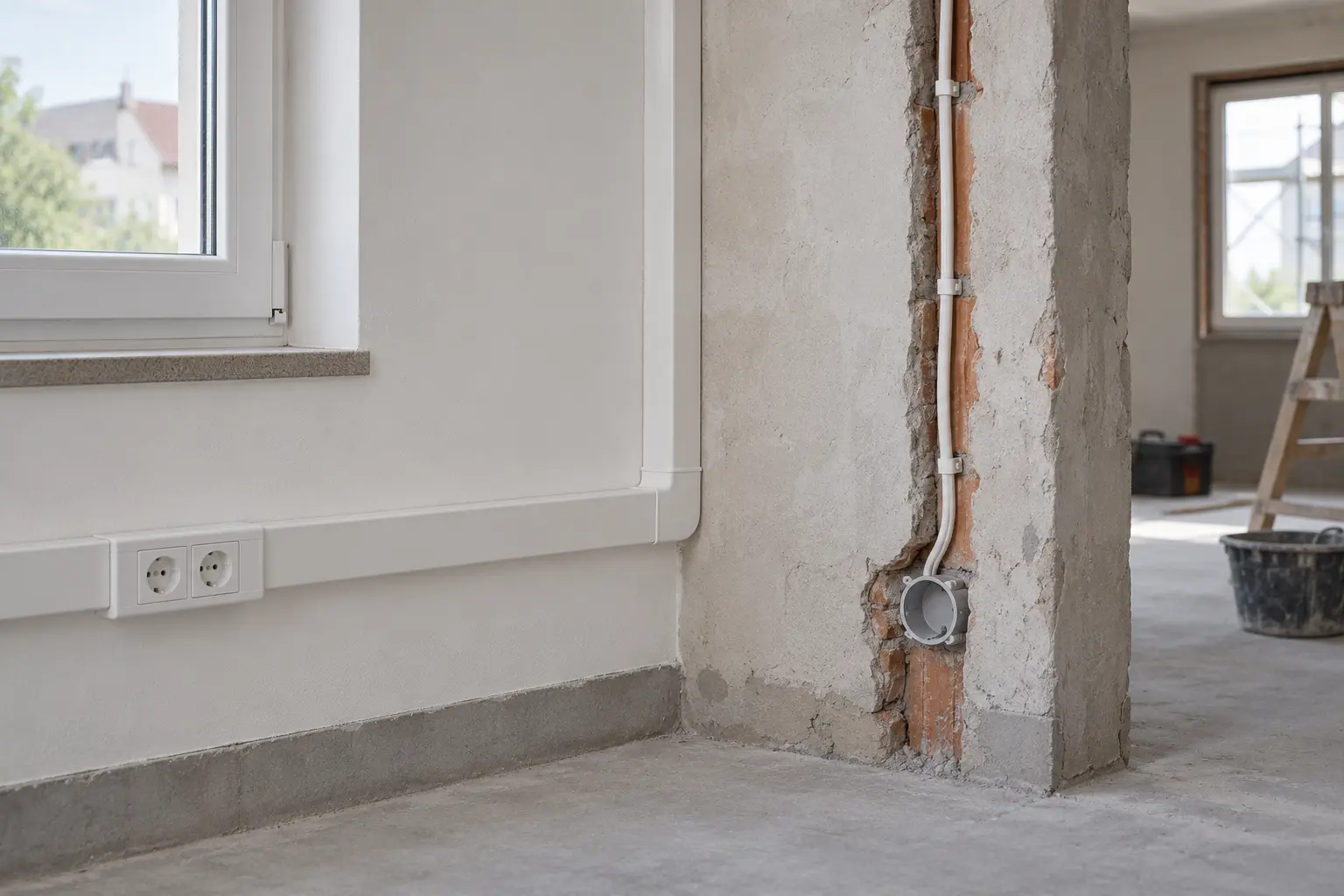

Designed for Building conduits, Distribution boards, Power circuits and Lighting circuits.
| Nominal size mm² | Insulation mm | Nominal OD mm | Approx. weight kg/km |
|---|---|---|---|
| 1 × 10 | 1.0 | 5.9 | 110 |
| 1 × 16 | 1.0 | 6.8 | 164 |
| 1 × 25 | 1.2 | 8.4 | 256 |
| 1 × 35 | 1.2 | 9.4 | 346 |
| 1 × 50 | 1.4 | 11.0 | 473 |
| 1 × 70 | 1.4 | 12.7 | 674 |
| 1 × 95 | 1.6 | 14.7 | 913 |
| 1 × 120 | 1.6 | 16.2 | 1150 |
| 1 × 150 | 1.8 | 18.0 | 1416 |
| 1 × 185 | 2.0 | 20.0 | 1749 |
| 1 × 240 | 2.2 | 23.0 | 2317 |
Dimensions are nominal and may vary within the applicable product tolerance.
Download TDS
Yes. Send the exact cable designation and, where possible, the existing datasheet or project specification. We compare conductor material, construction, voltage rating, standards and the requirements that affect the installation before confirming whether an equivalent can be offered.
Send the exact requirement. The website does not represent every possible production combination. We will check whether the construction can be supplied and whether the required standards or certification scope also cover that version before it is quoted.
No single MOQ applies across the entire range. The practical quantity depends on the cable type, size, construction, packing and production conditions. Send the actual cable list and quantities and we can confirm the applicable requirement for those items.
