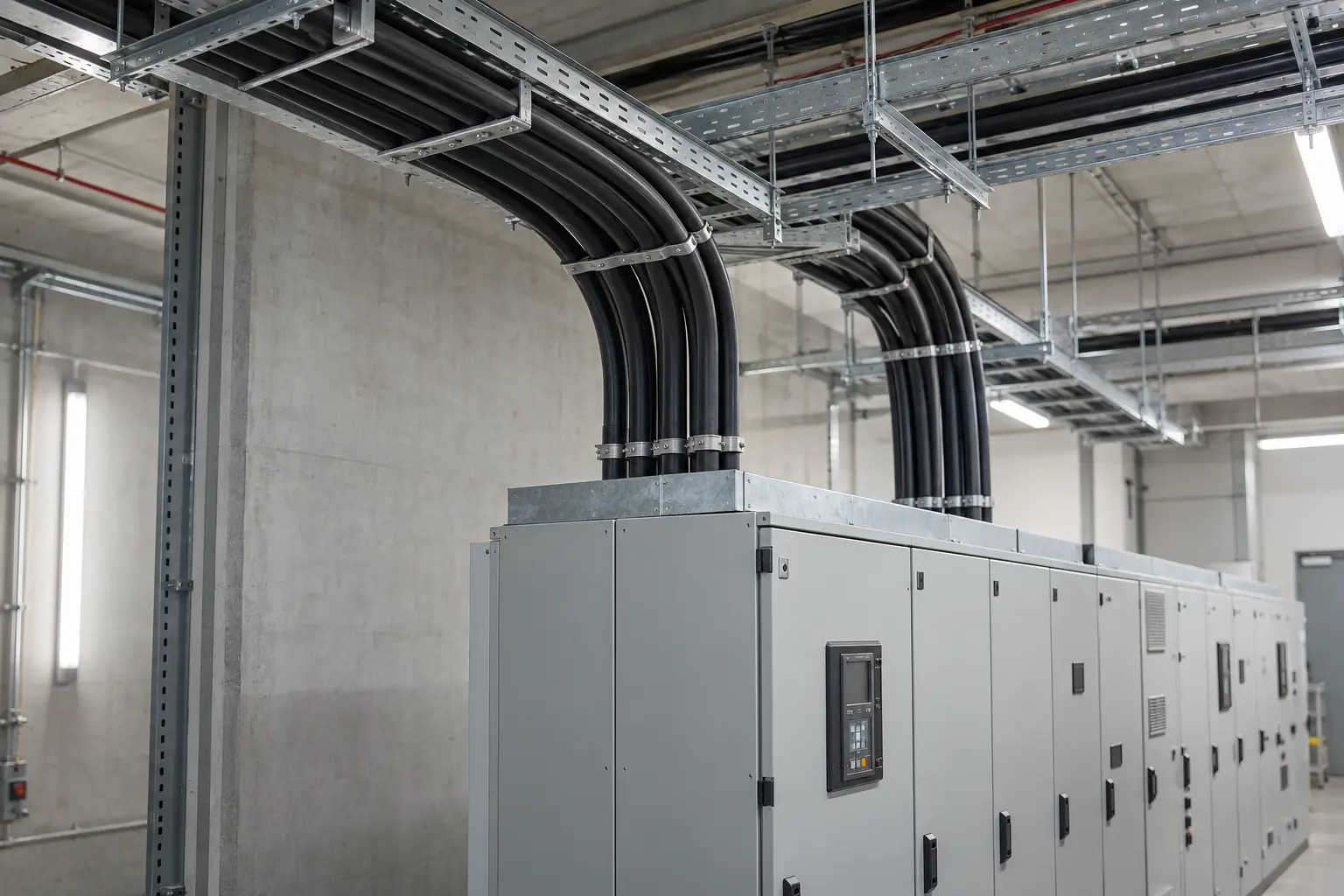

NAYY combines an aluminium conductor with PVC insulation and sheath for fixed building, outdoor and underground distribution.
NAYY replaces copper with aluminium in a conventional PVC-insulated, PVC-sheathed 0.6/1 kV power cable. On long routes and larger cross-sections, aluminium can reduce conductor cost and cable weight, making it attractive for utility PV sites, infrastructure and general outdoor distribution where the route has enough space for the larger conductor size required by aluminium.

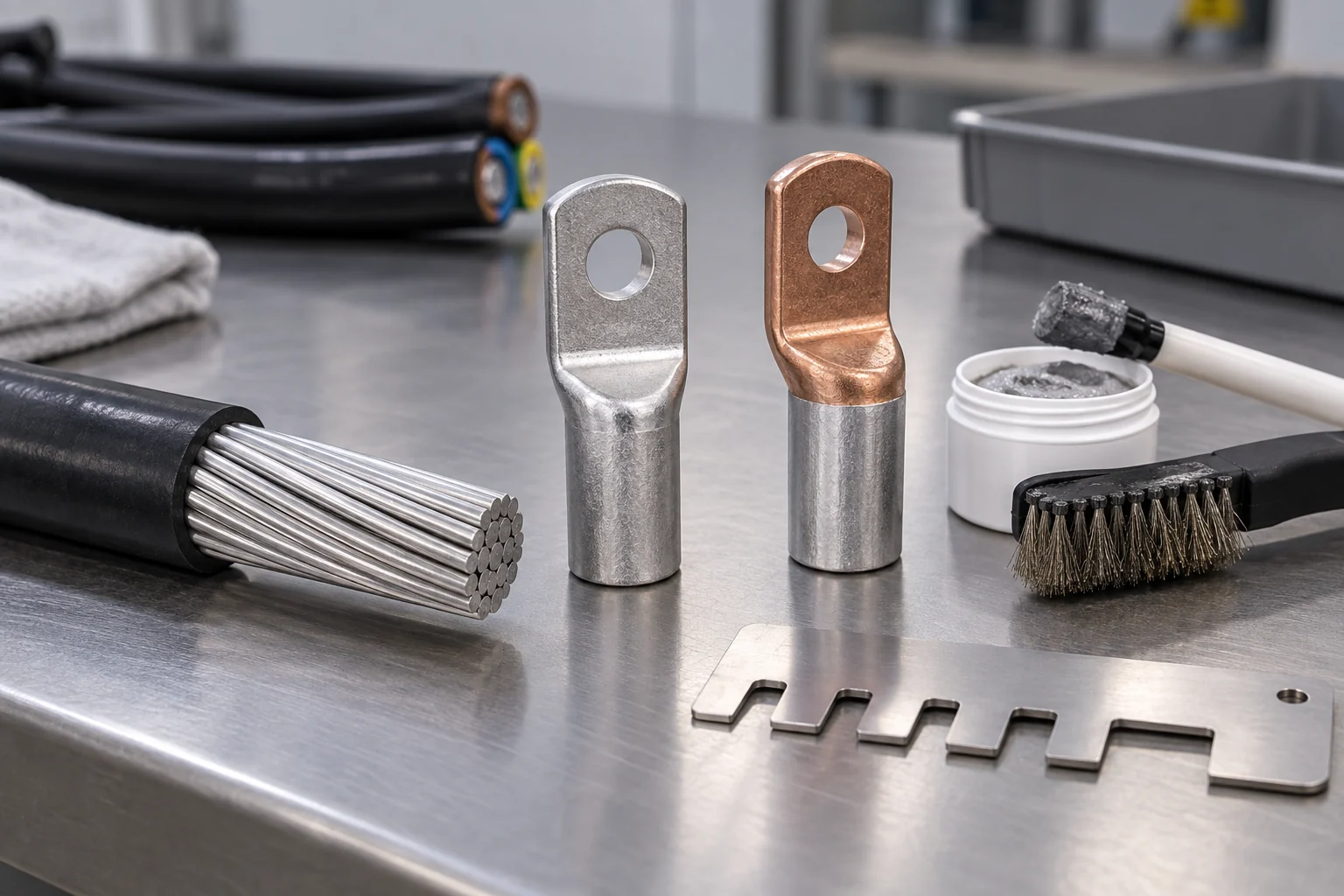

The economic advantage of aluminium depends on the termination system being designed around it. Lugs, terminals and jointing accessories need to be suitable for aluminium, and equipment entries need enough space for the cable diameter and bend radius. Selecting NAYY early allows these interfaces to be planned with the feeder instead of treating the conductor material as a late substitution.

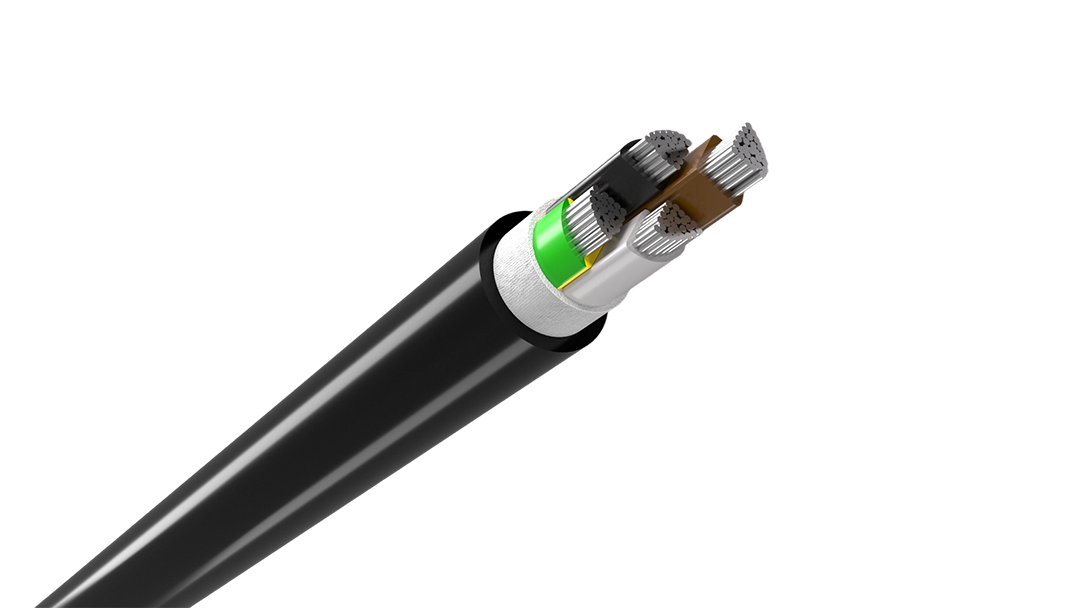

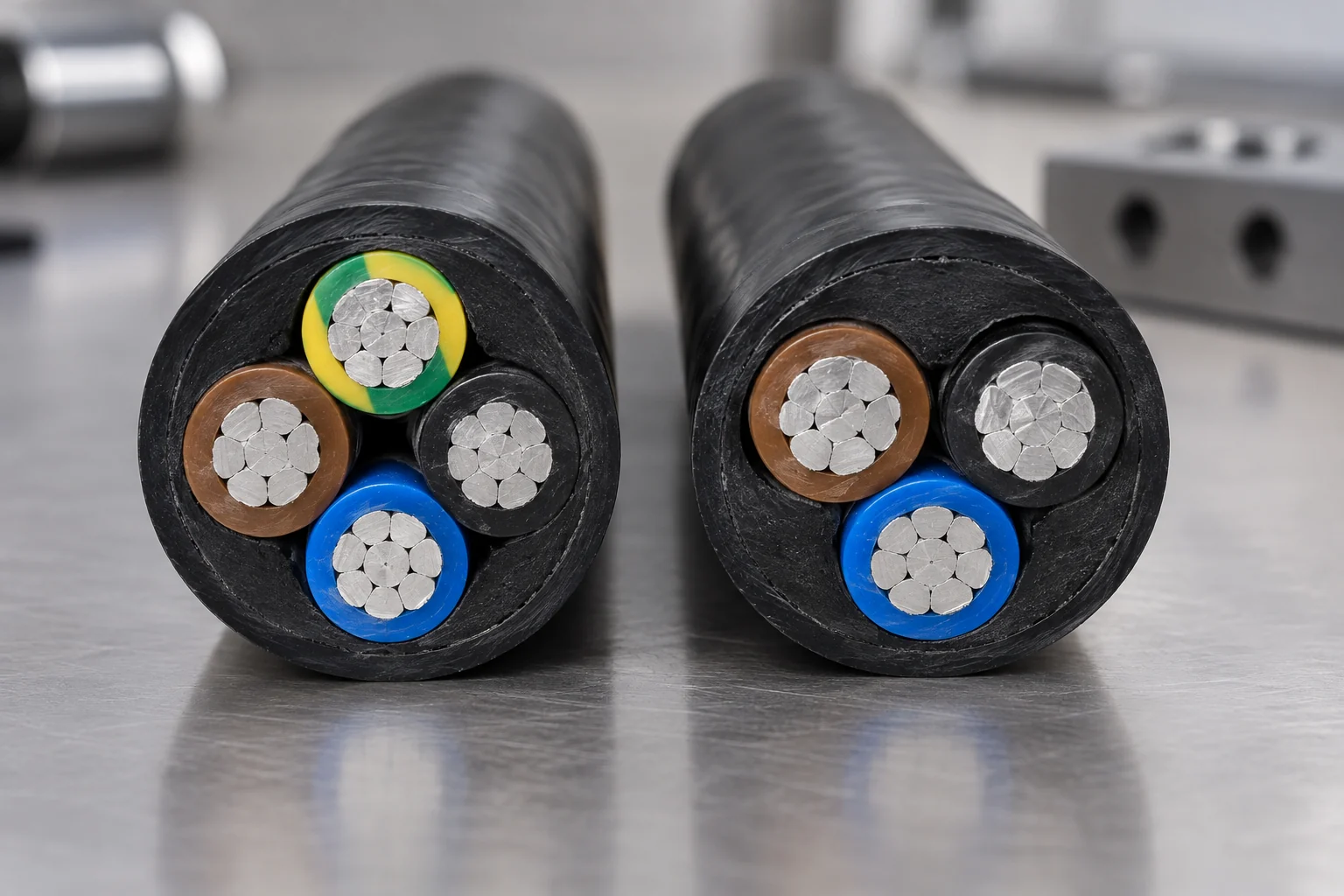

NAYY-J includes a green/yellow protective conductor, while NAYY-O does not. The choice lets the same aluminium feeder family serve circuits with different protective-conductor arrangements. Coordinating this with the earthing design avoids unnecessary parallel conductors and keeps the cable, lugs and enclosure layout consistent from the start.

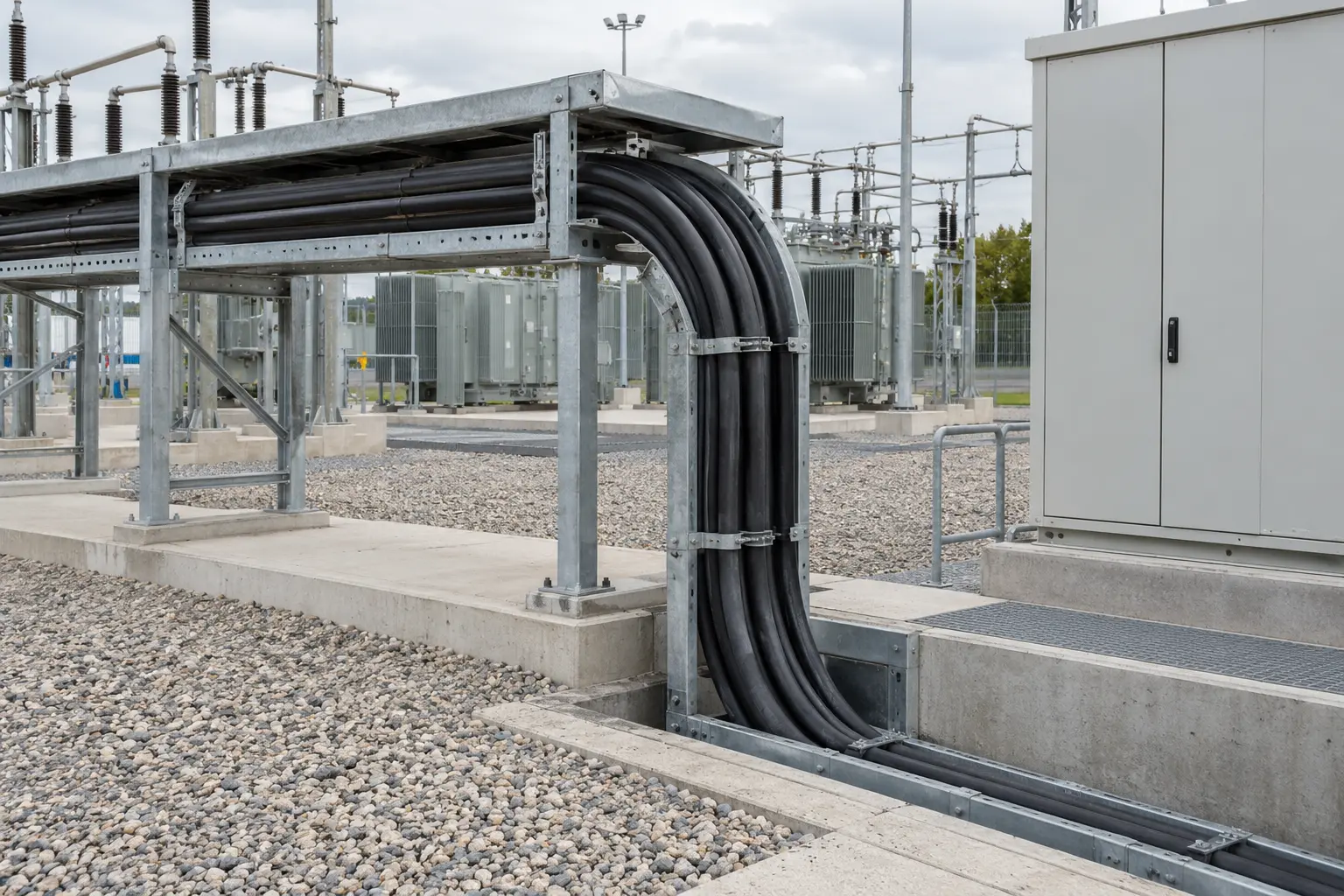

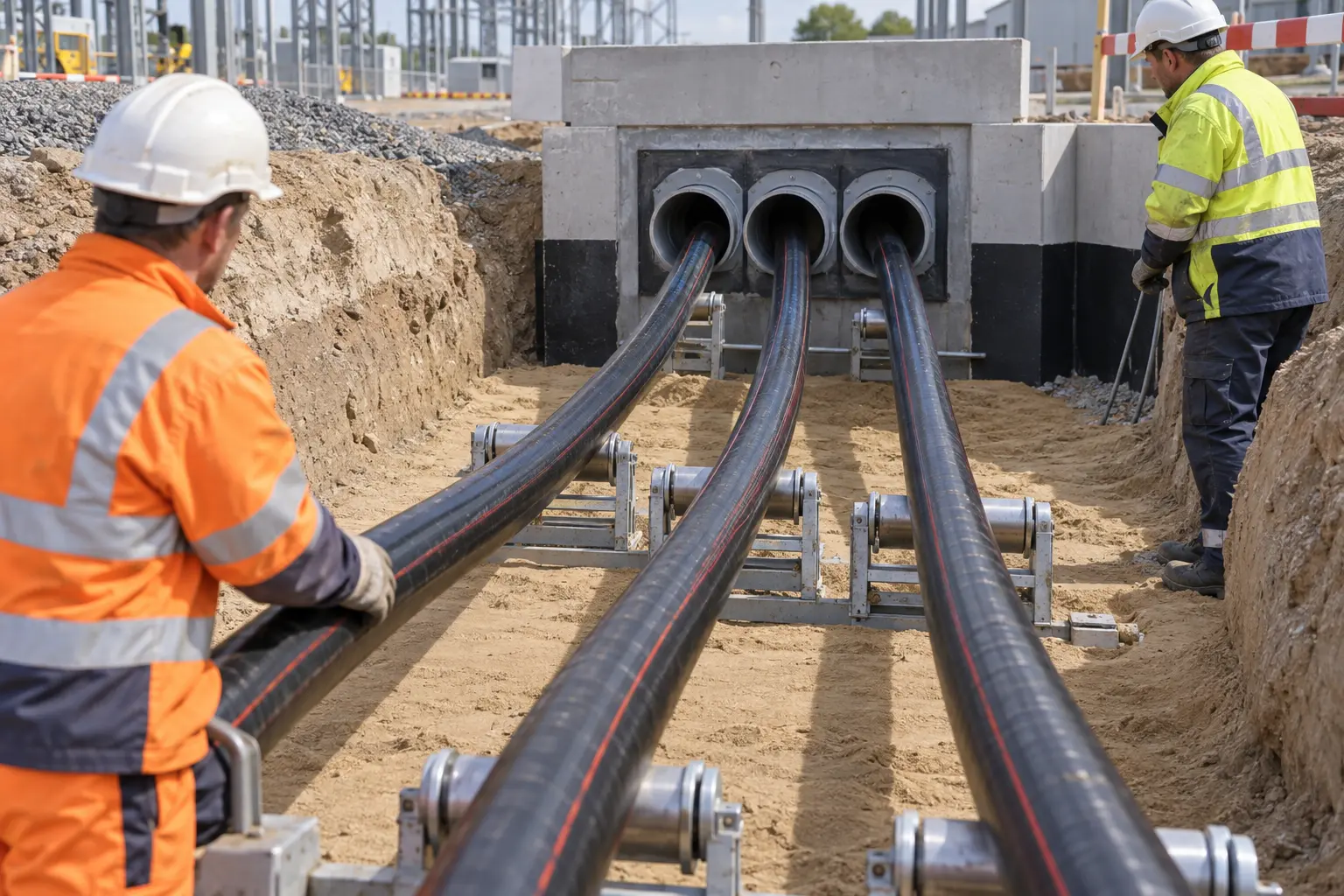

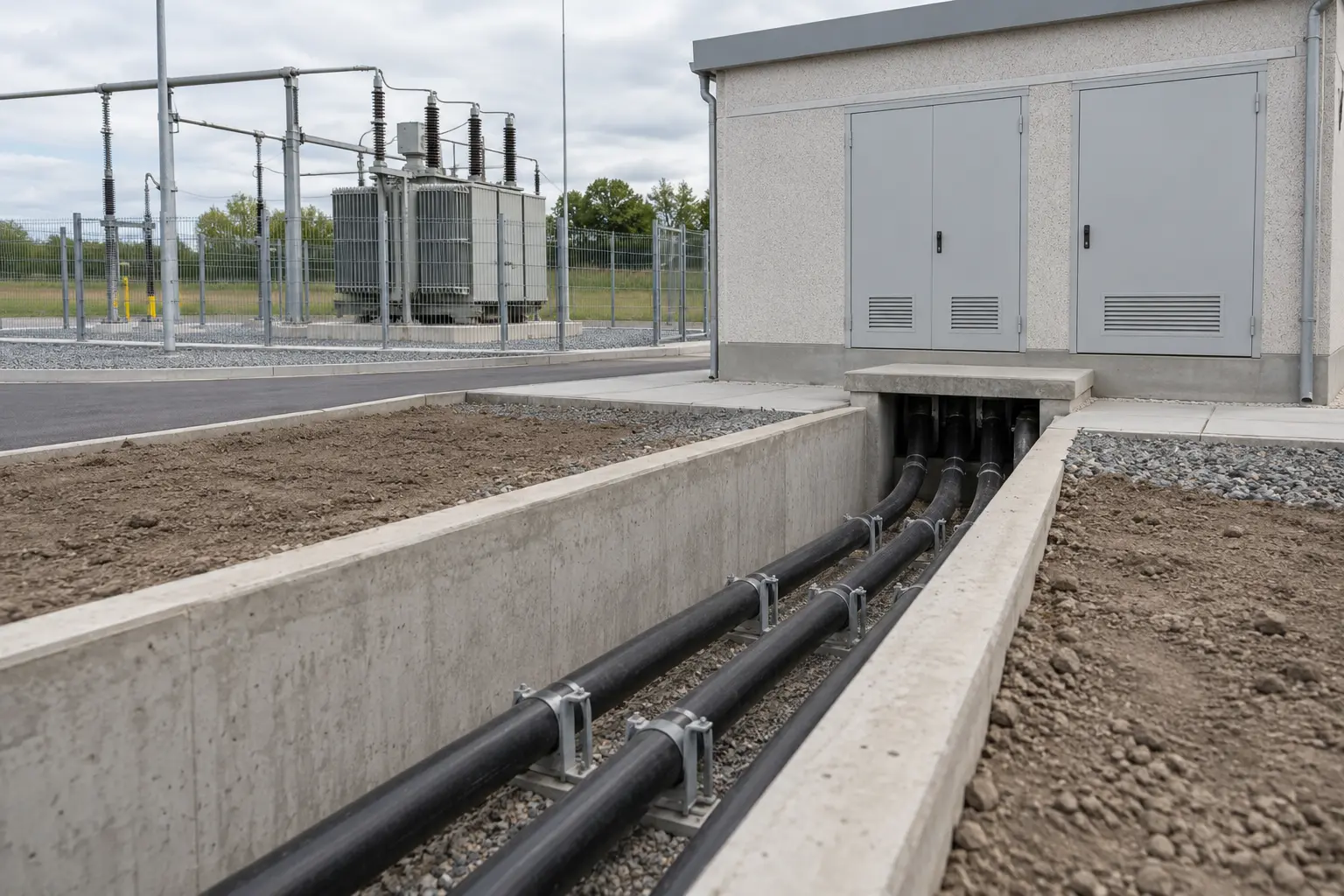

Designed for Utility PV sites, Outdoor distribution, Underground feeders and Infrastructure power routes.
| Configuration | Conductor type | Insulation mm | Sheath mm | Nominal OD mm | Approx. weight kg/km |
|---|---|---|---|---|---|
| 1 × 16 | RE | 1.0 | 1.8 | 10.5 | 145 |
| 1 × 25 | RE | 1.2 | 1.8 | 12.0 | 195 |
| 1 × 35 | RE | 1.2 | 1.8 | 13.5 | 255 |
| 1 × 50 | RM | 1.4 | 1.8 | 15.4 | 298 |
| 1 × 70 | RM | 1.4 | 1.8 | 17.0 | 383 |
| 1 × 95 | RM | 1.6 | 1.8 | 19.0 | 490 |
| 1 × 120 | RM | 1.6 | 1.8 | 20.0 | 575 |
| 1 × 150 | RM | 1.8 | 1.8 | 22.0 | 695 |
| 1 × 185 | RM | 2.0 | 1.8 | 25.0 | 845 |
| 1 × 240 | RM | 2.2 | 1.8 | 28.0 | 1100 |
| 1 × 300 | RM | 2.4 | 1.9 | 30.0 | 1379 |
| 1 × 400 | RM | 2.6 | 2.0 | 34.0 | 1615 |
| 1 × 500 | RM | 2.8 | 2.1 | 37.0 | 2015 |
| 1 × 630 | RM | 2.8 | 2.2 | 43.0 | 2472 |
| 4 × 16 | RE | 1.2 | 1.8 | 24.0 | 750 |
| 4 × 25 | RE | 1.2 | 1.8 | 25.0 | 950 |
| 4 × 35 | RE/SE | 1.2 | 1.8 | 28.1 | 1120 |
| 4 × 50 | SM/SE | 1.4 | 1.9 | 29.5–30.0 | 1151 |
| 4 × 70 | SM/SE | 1.4 | 2.1 | 33.4–35.0 | 1549 |
| 4 × 95 | SM/SE | 1.6 | 2.2 | 39.0 | 2030 |
| 4 × 120 | SM/SE | 1.6 | 2.4 | 43.0 | 2400 |
| 4 × 150 | SM/SE | 1.8 | 2.5 | 46.0 | 3030 |
| 4 × 185 | SM/SE | 2.0 | 2.7 | 51.0 | 3650 |
| 4 × 240 | SM/SE | 2.2 | 2.9 | 56–58 | 4800 |
| 5 × 10 | RE | 1.0 | 1.8 | 19.3 | 585 |
| 5 × 16 | RE | 1.0 | 1.8 | 21.8 | 938 |
| 5 × 25 | RE | 1.2 | 1.8 | 27.1 | 1188 |
| 5 × 35 | RE | 1.2 | 1.8 | 30.2 | 1375 |
| 5 × 50 | RM | 1.4 | 1.8 | 36.2 | 1720 |
| 5 × 70 | RM | 1.4 | 2.1 | 44.0 | 2240 |
| 5 × 95 | RM | 1.6 | 2.1 | 47.0 | 3060 |
| 5 × 120 | RM | 1.6 | 2.4 | 53.0 | 3580 |
| 5 × 150 | RM | 1.8 | 2.5 | 56.0 | 4400 |
| 5 × 185 | RM | 2.0 | 2.7 | 59.0 | 5481 |
| 5 × 240 | RM | 2.2 | 2.9 | 71.0 | 7000 |
NAYY-J and NAYY-O share the same basic aluminium/PVC dimensional basis; core identification differs by version.
Download TDS

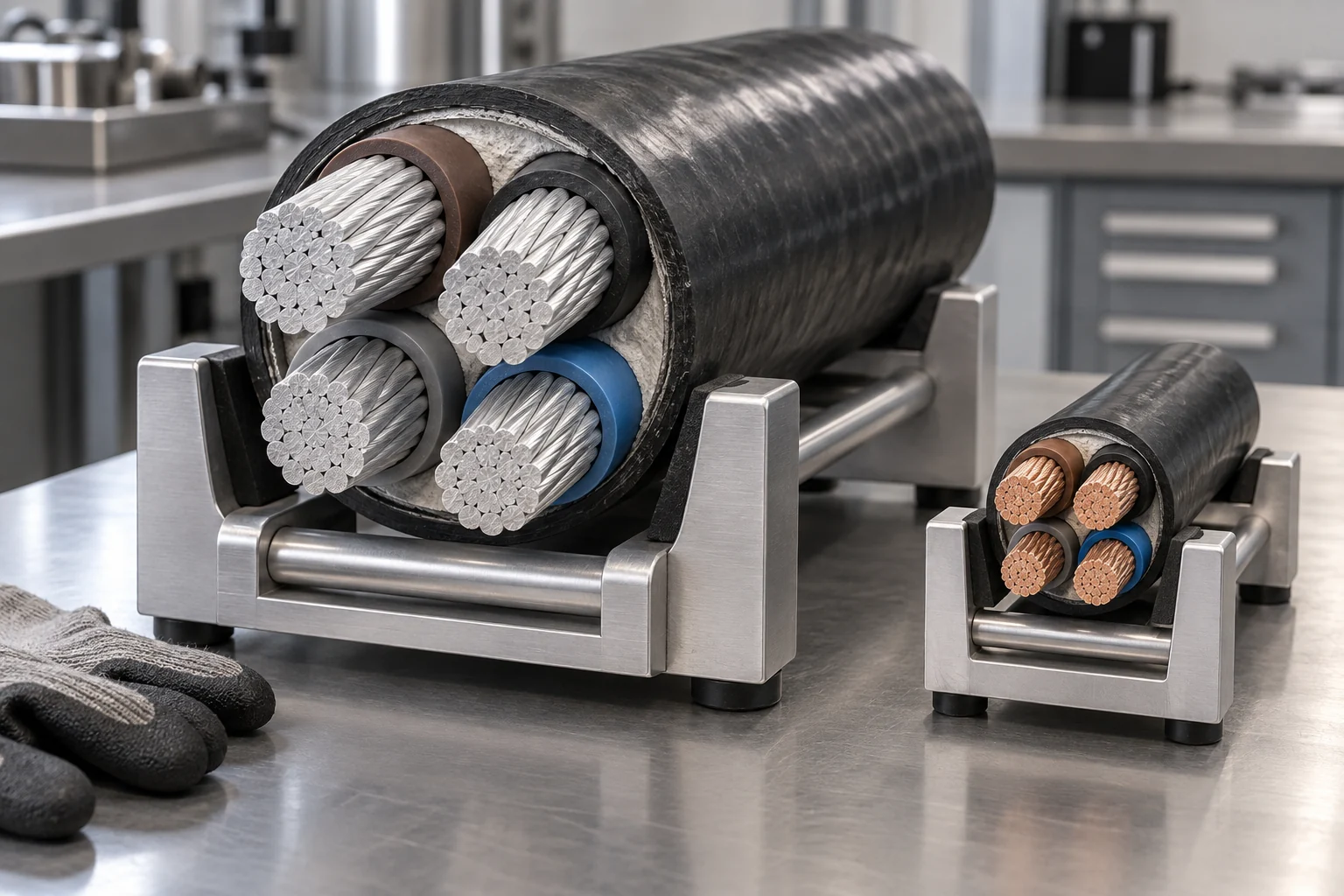

Yes, this can be reviewed, but aluminium is not normally a size-for-size replacement for copper. Current, route length, voltage drop, installation method, available space and the equipment termination system all need to be checked before an alternative size is proposed.
Yes. Send the exact cable designation and, where possible, the existing datasheet or project specification. We compare conductor material, construction, voltage rating, standards and the requirements that affect the installation before confirming whether an equivalent can be offered.
Send the exact requirement. The website does not represent every possible production combination. We will check whether the construction can be supplied and whether the required standards or certification scope also cover that version before it is quoted.
