The H1Z2Z2-K photovoltaic cable body is protected by an external steel-wire armour layer. The metallic barrier is intended for ground-level, utility and other exposed DC routes where rodent resistance and mechanical protection are both part of the cable-selection requirement.
The external steel-wire layer places a metallic barrier around the photovoltaic cable body, giving exposed sections substantially more resistance to gnawing and general mechanical damage than a modified sheath or polymer barrier alone. It is intended for routes where cable damage would be difficult or costly to repair.
Armour adds diameter, weight and installation work, so it should be concentrated on genuinely exposed sections rather than used as a default string cable. Ground-level runs, utility sites and areas with severe pest or mechanical risk are the typical reasons to move to this construction.
The finished armoured cable needs more bend space and different support and entry planning than standard H1Z2Z2-K. Glands, clamps and termination space should therefore be selected from the final production dimensions. The armour is a protective layer and should not be treated as an electrical screen or PE conductor unless the project design and issued product documentation explicitly define that function.

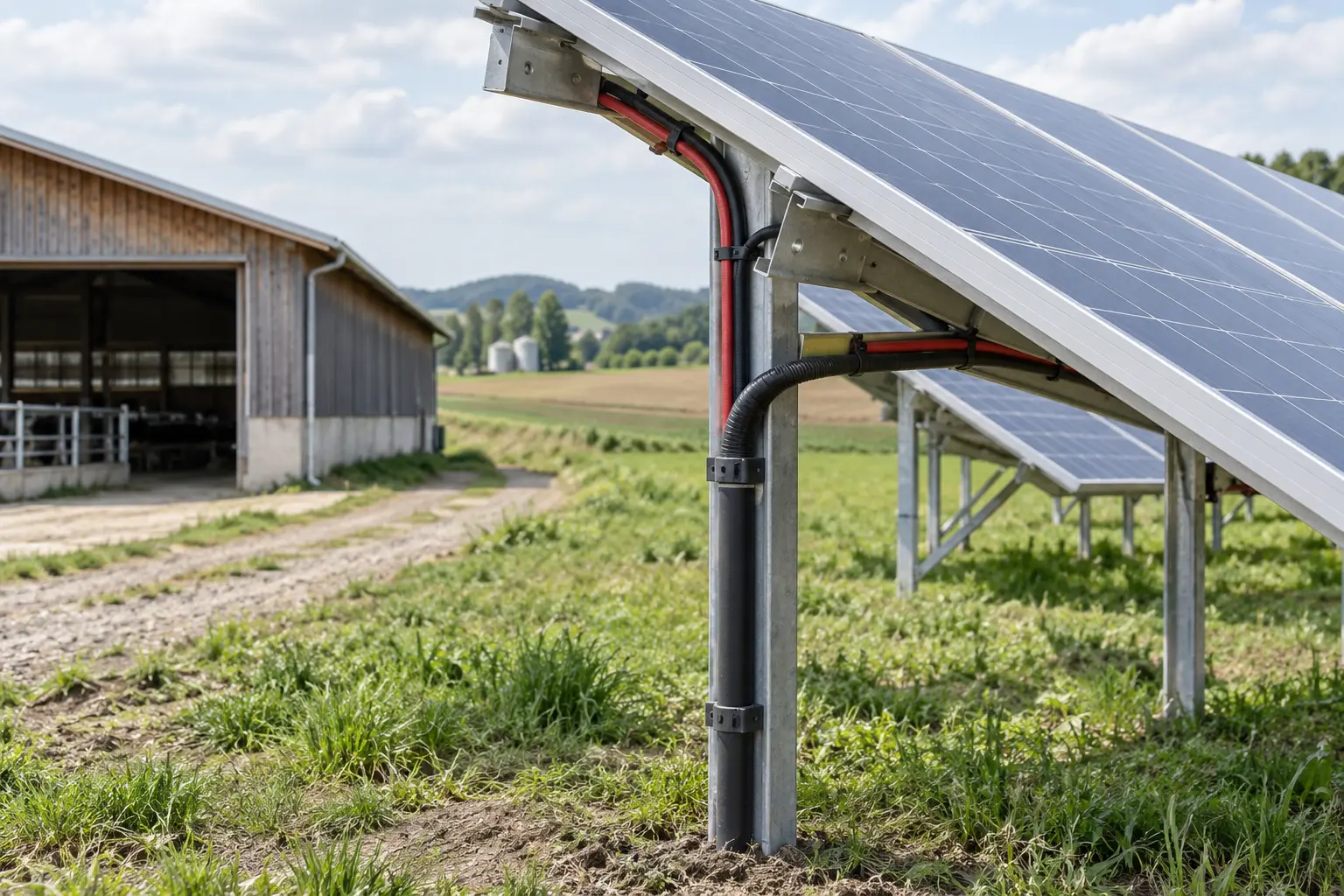

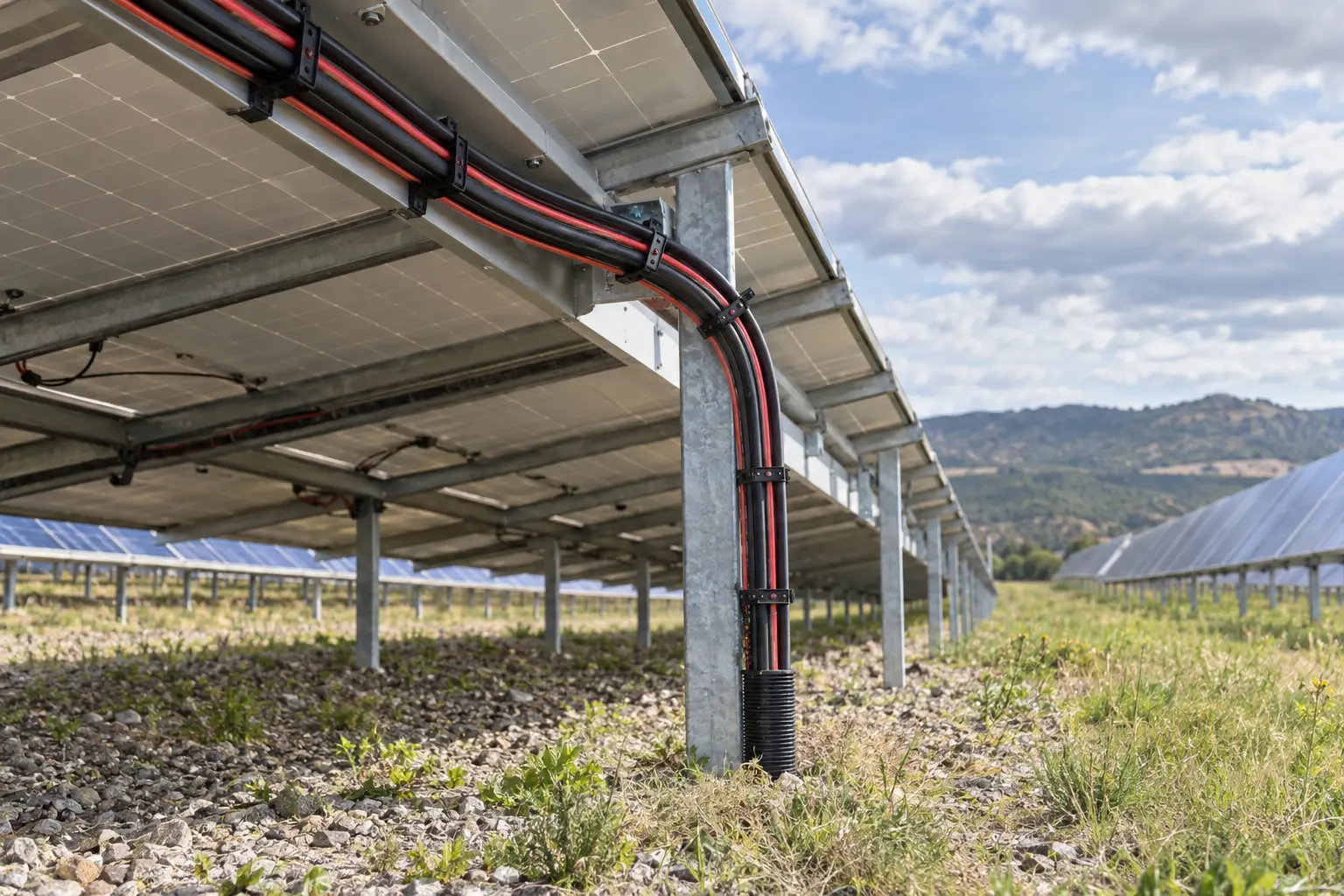

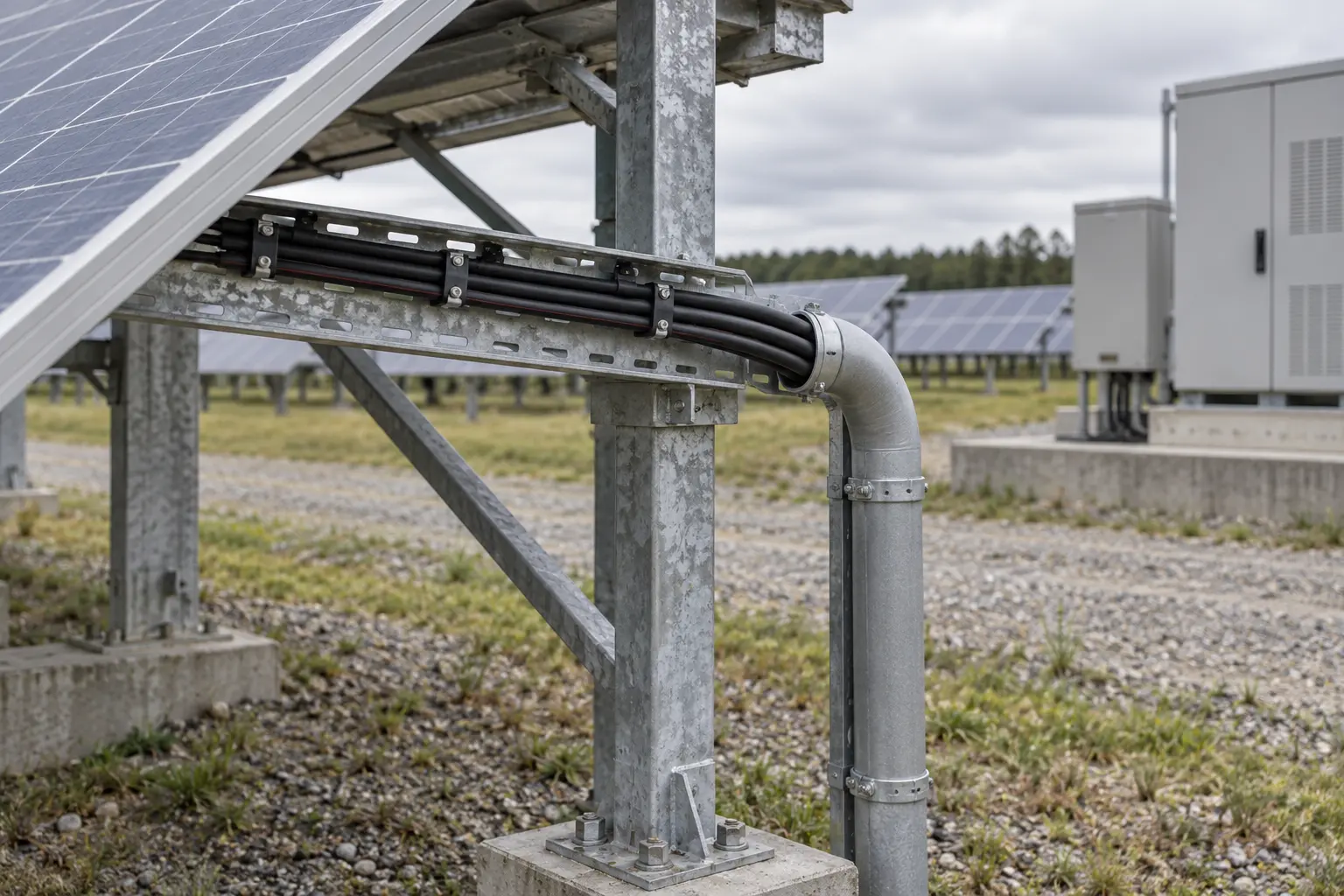

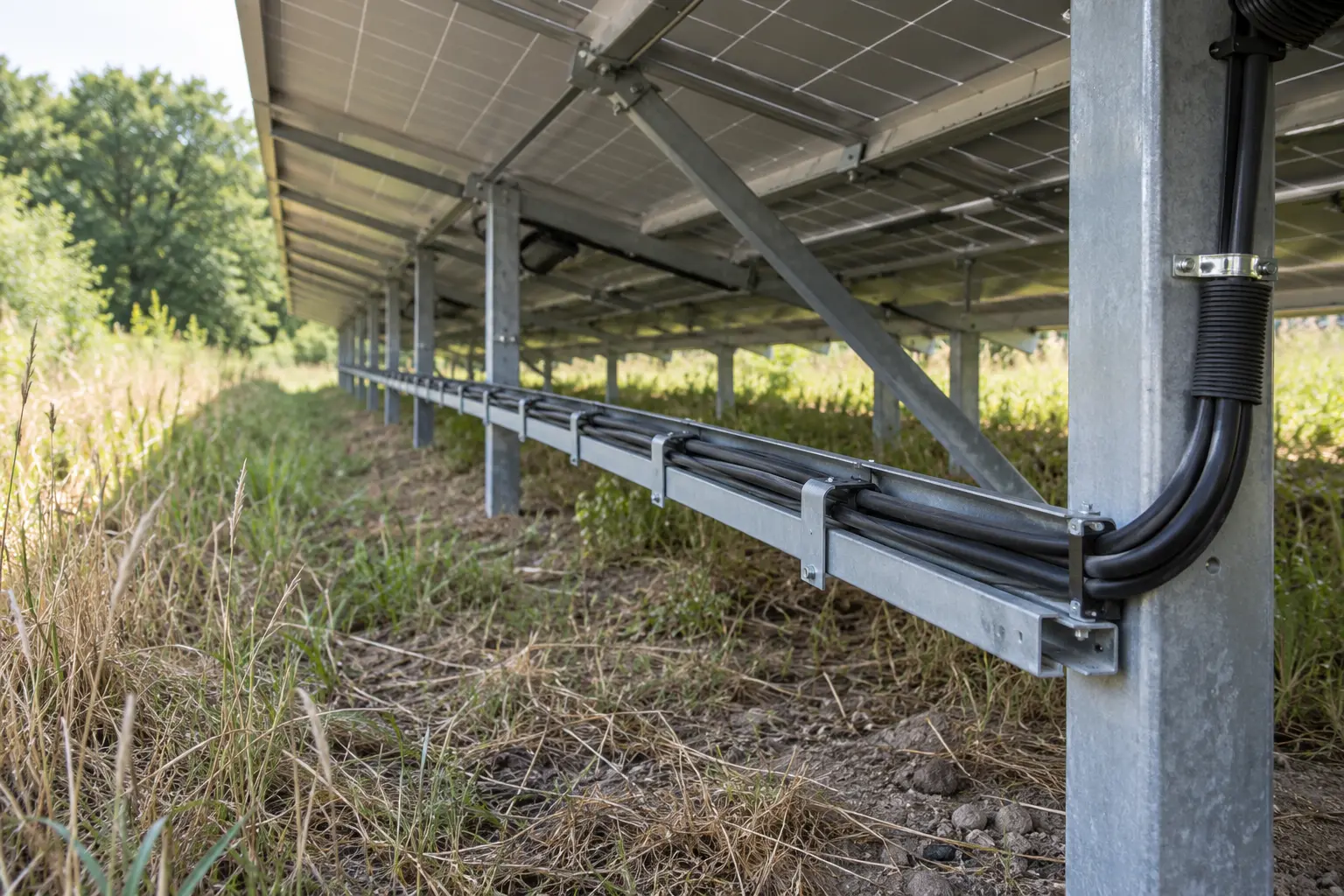

Designed for Utility PV fields, Ground-mounted solar arrays, Agricultural and remote PV sites and Mechanically exposed fixed DC routes.
| Description | Nominal cross section mm² | OD of conductor mm | Insulation mm | PV sheath mm | Base H1Z2Z2-K diameter mm | Conductor resistance at 20°C Ω/km | Cable colour |
|---|---|---|---|---|---|---|---|
| H1Z2Z2-K SWA | 1 × 1.5 | — | 0.7 | 0.8 | 4.6 | 13.7 | Black / Red |
| H1Z2Z2-K SWA | 1 × 2.5 | 2.0 | 0.7 | 0.8 | 5.1 ± 0.1 | 8.21 | Black / Red |
| H1Z2Z2-K SWA | 1 × 4 | 2.45 | 0.7 | 0.8 | 5.5 ± 0.15 | 5.09 | Black / Red |
| H1Z2Z2-K SWA | 1 × 6 | 3.0 | 0.7 | 0.8 | 6.1 ± 0.15 | 3.39 | Black / Red |
| H1Z2Z2-K SWA | 1 × 10 | 4.1 | 0.7 | 0.8 | 7.2 ± 0.3 | 1.95 | Black / Red |
| H1Z2Z2-K SWA | 1 × 16 | 5.1 | 0.7 | 0.9 | 8.8 ± 0.4 | 1.24 | Black / Red |
| H1Z2Z2-K SWA | 1 × 25 | 6.3 | 0.9 | 1.0 | 10.8 ± 0.5 | 0.795 | Black / Red |
| H1Z2Z2-K SWA | 1 × 35 | 8.0 | 0.9 | 1.1 | 12.6 ± 0.6 | 0.565 | Black / Red |
The diameter shown is the H1Z2Z2-K cable body before the external steel-wire armour. Finished armoured overall diameter, armour geometry, weight and minimum bending radius are construction-specific and must be confirmed from the HORNOUR production drawing.
Download TDS
Where a certificate, test report or DoP is part of the approval package, we match it to the quoted cable construction and the applicable scope. A document for one version is not treated as approval for another simply because the model name is similar.
Not automatically. Twin constructions, connectorised extensions and modified constructions such as nylon barrier or steel-wire armour have to be checked against the scope of the applicable documents. For a PV extension lead, CPR evidence for the base cable does not by itself classify the complete connectorised assembly.
