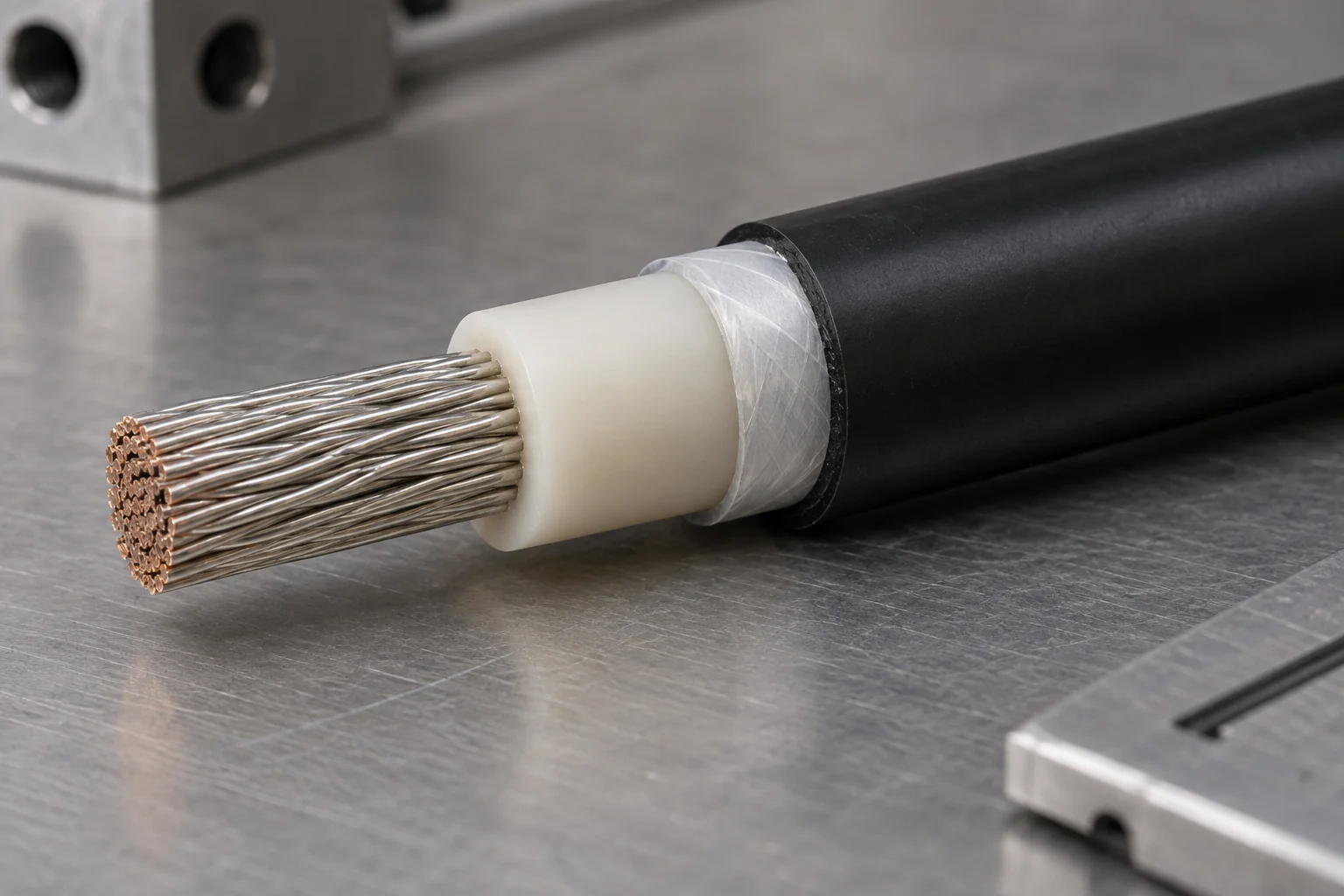

A nylon barrier is added between the cross-linked photovoltaic insulation system and the outer sheath. The harder intermediate layer gives rodents an additional physical barrier while retaining a non-metallic cable construction for fixed PV wiring.
The added nylon layer creates a harder surface beneath the outer sheath, so a rodent must penetrate an additional physical barrier before reaching the photovoltaic insulation. This makes the construction suitable where the route needs more than a taste or odour deterrent but does not justify metal armour.
Nylon adds physical resistance without introducing a conductive armour layer. The cable therefore remains easier to route through rooftop supports, trays and equipment entries than a steel-armoured design, while giving exposed sections a tougher construction than standard H1Z2Z2-K.
The nylon-barrier version fits routes where rodent access is recurring and a physical layer is preferred. Where the same route is also exposed to impact, crushing or severe mechanical damage, steel-wire armour provides the more appropriate protection level.

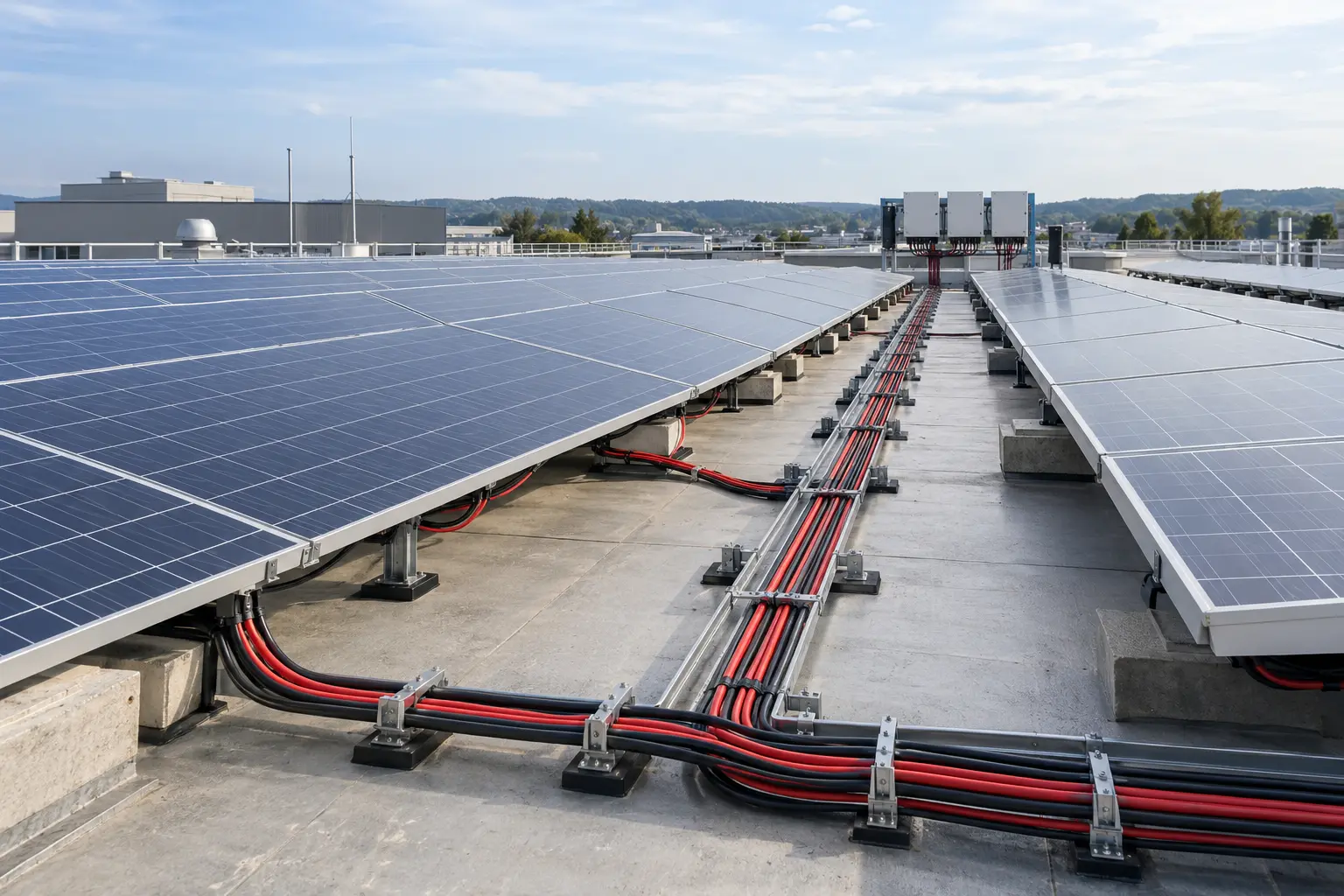

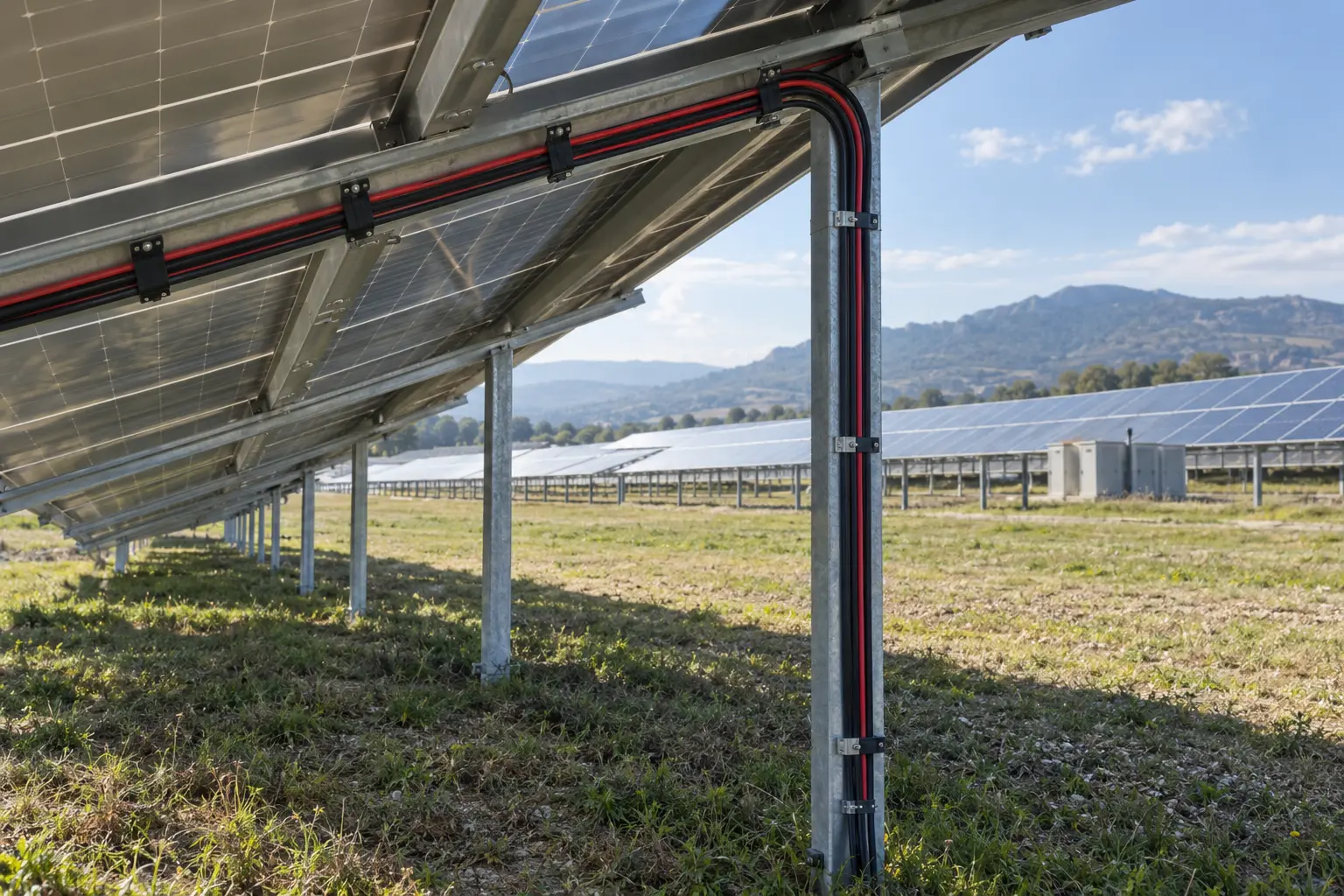

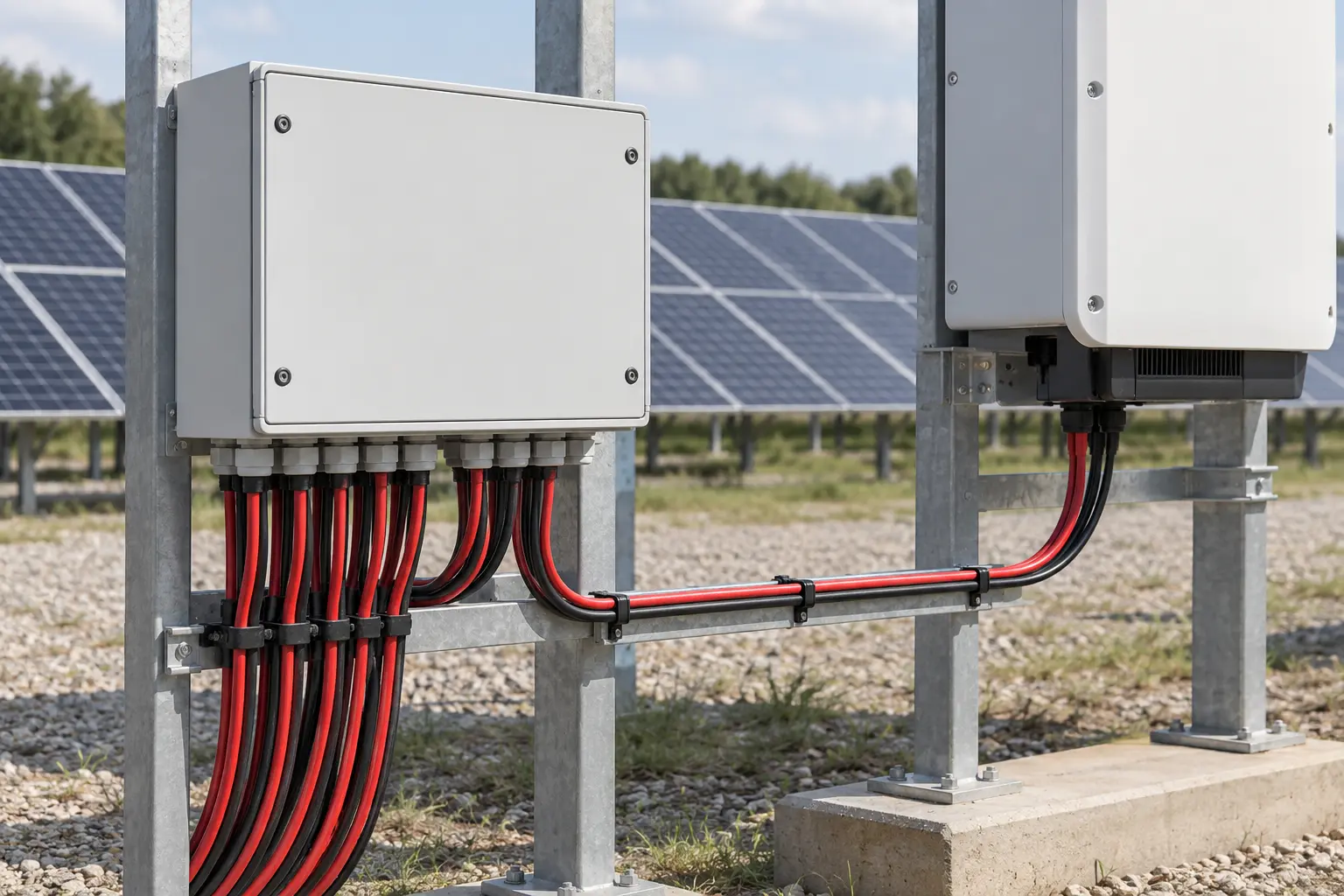

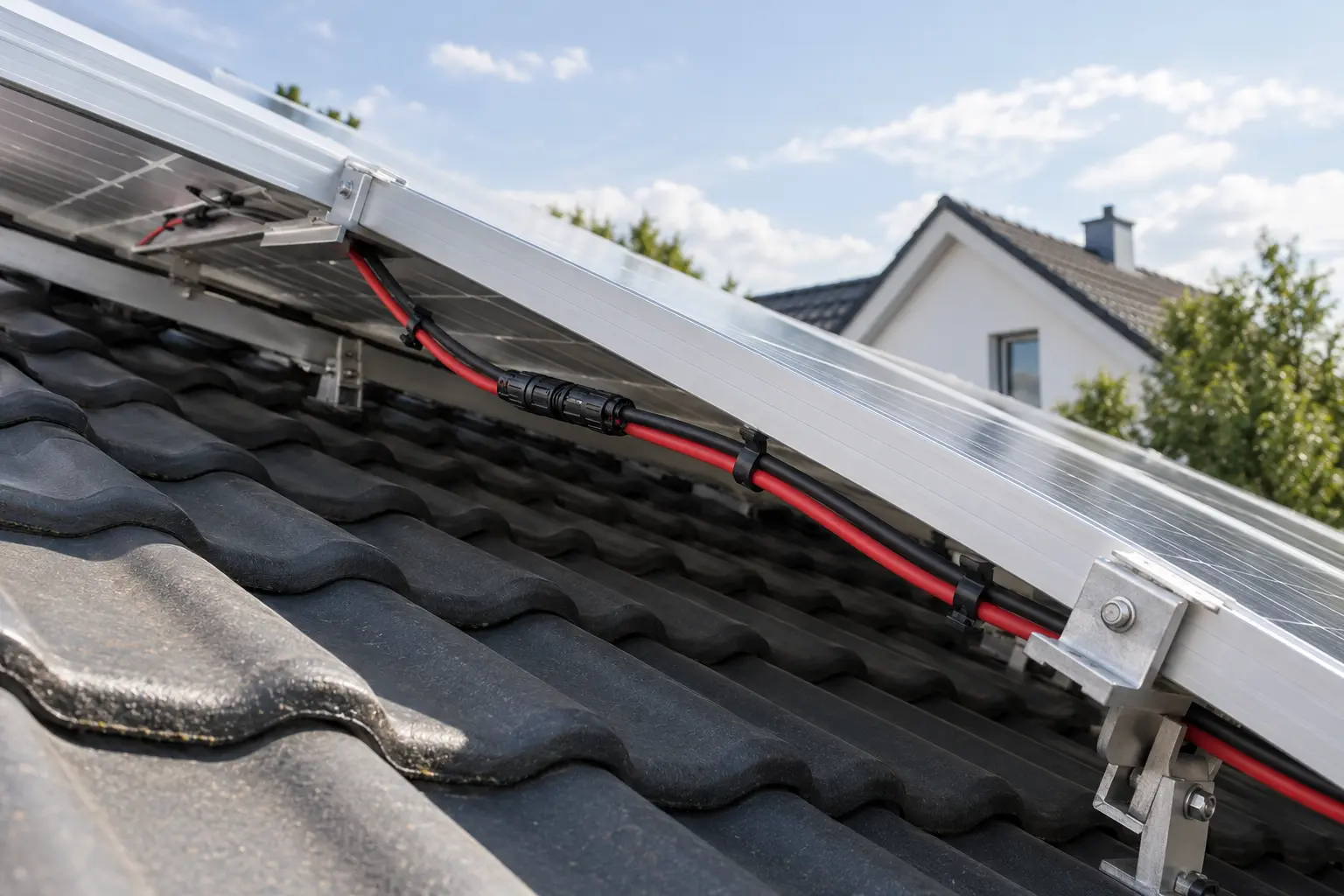

Designed for PV rooftops with rodent exposure, Commercial solar arrays, Agricultural PV systems and Protected outdoor DC routes.
| Description | Nominal cross section mm² | OD of conductor mm | Insulation mm | Nylon barrier mm | Sheath mm | Conductor resistance at 20°C Ω/km | Cable colour |
|---|---|---|---|---|---|---|---|
| H1Z2Z2-K Nylon Barrier | 1 × 1.5 | — | 0.7 | 0.7 | 0.8 | 13.7 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 2.5 | 2.0 | 0.7 | 0.7 | 0.8 | 8.21 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 4 | 2.45 | 0.7 | 0.7 | 0.8 | 5.09 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 6 | 3.0 | 0.7 | 0.7 | 0.8 | 3.39 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 10 | 4.1 | 0.7 | 0.7 | 0.8 | 1.95 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 16 | 5.1 | 0.7 | 0.7 | 0.9 | 1.24 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 25 | 6.3 | 0.9 | 0.7 | 1.0 | 0.795 | Black / Red |
| H1Z2Z2-K Nylon Barrier | 1 × 35 | 8.0 | 0.9 | 0.7 | 1.1 | 0.565 | Black / Red |
Conductor, insulation, sheath and electrical values follow the standard H1Z2Z2-K data. Nylon barrier nominal thickness is 0.7 mm. Finished overall diameter and weight must be confirmed from the HORNOUR production drawing.
Download TDS
Where a certificate, test report or DoP is part of the approval package, we match it to the quoted cable construction and the applicable scope. A document for one version is not treated as approval for another simply because the model name is similar.
Not automatically. Twin constructions, connectorised extensions and modified constructions such as nylon barrier or steel-wire armour have to be checked against the scope of the applicable documents. For a PV extension lead, CPR evidence for the base cable does not by itself classify the complete connectorised assembly.
