XLPE Insulated and PVC Sheathed 0.6/1 kV Power Cable for Commercial & Industrial Distribution
XLPE insulation enhances dielectric properties and thermal stability, allowing N2XY cables to operate reliably at higher continuous temperatures. This results in improved current carrying capacity and reduced electrical losses compared with standard PVC insulated cables.

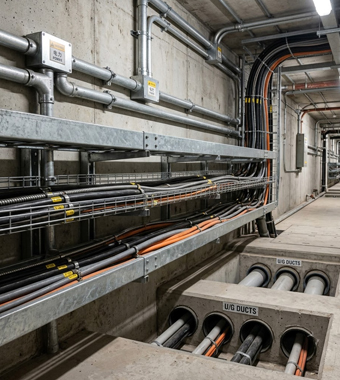

Copper conductors and XLPE insulation provide strong mechanical and electrical performance. The PVC outer sheath protects the cable from environmental exposure, mechanical stress, and installation wear, suitable for cable trays, conduits, and underground ducts when properly protected.
Designed in accordance with internationally accepted power cable standards, N2XY cables support safe and compliant electrical distribution. Certifications and flameretardant performance improve project acceptance and reduce onsite safety risks.
| Description | Cross Section m㎡ |
OD of conductor mm | Thickness of Insulation mm | Thickness of Sheath mm | Cable overall diameter mm | Current Capaciy in air A | Alu weight kg/km | Cable weight kg/km |
|---|---|---|---|---|---|---|---|---|
| NA2XY 0.6/1(1.2)kV | 1 x 25 | 6.3 | 0.9 | 1.4 | 11.7 | 136 | 72.5 | 132 |
| NA2XY 0.6/1(1.2)kV | 1 x 35 | 7.1 | 0.9 | 1.4 | 12.5 | 166 | 101.5 | 166 |
| NA2XY 0.6/1(1.2)kV | 1 x 50 | 8.1 | 1 | 1.4 | 13.6 | 205 | 145 | 211 |
| NA2XY 0.6/1(1.2)kV | 1 x 70 | 9.7 | 1.1 | 1.4 | 15.5 | 260 | 203 | 283 |
| NA2XY 0.6/1(1.2)kV | 1 x 95 | 11.4 | 1.1 | 1.5 | 17.4 | 321 | 275.5 | 376 |
| NA2XY 0.6/1(1.2)kV | 1 x 120 | 12.7 | 1.2 | 1.5 | 19 | 376 | 348 | 456 |
| NA2XY 0.6/1(1.2)kV | 1 x 150 | 14.5 | 1.4 | 1.6 | 22 | 431 | 435 | 560 |
| NA2XY 0.6/1(1.2)kV | 1 x 185 | 15.9 | 1.6 | 1.7 | 23.9 | 501 | 536.5 | 697 |
| NA2XY 0.6/1(1.2)kV | 1 x 240 | 18.6 | 1.7 | 1.8 | 27 | 600 | 696 | 878 |
| NA2XY 0.6/1(1.2)kV | 1 x 300 | 20.7 | 1.8 | 1.9 | 29.5 | 696 | 870 | 1073 |
| NA2XY 0.6/1(1.2)kV | 1 x 400 | 23.5 | 2 | 2 | 32.9 | 821 | 1160 | 1347 |
| NA2XY 0.6/1(1.2)kV | 1 x 500 | 26.5 | 2.2 | 2.1 | 36.6 | 971 | 1450 | 1705 |
| NA2XY 0.6/1(1.2)kV | 1 x 630 | 30.2 | 2.4 | 2.2 | 41 | 1151 | 1827 | 2705 |
Download TDS
Yes. Send the exact cable designation and, where possible, the existing datasheet or project specification. We compare conductor material, construction, voltage rating, standards and the requirements that affect the installation before confirming whether an equivalent can be offered.
Send the exact requirement. The website does not represent every possible production combination. We will check whether the construction can be supplied and whether the required standards or certification scope also cover that version before it is quoted.
Requested drum lengths can be reviewed with the cable schedule. What is practical depends on cable dimensions and weight, total quantity, drum capacity and transport or site-handling limits, so the required lengths should be included with the enquiry.
No single MOQ applies across the entire range. The practical quantity depends on the cable type, size, construction, packing and production conditions. Send the actual cable list and quantities and we can confirm the applicable requirement for those items.
