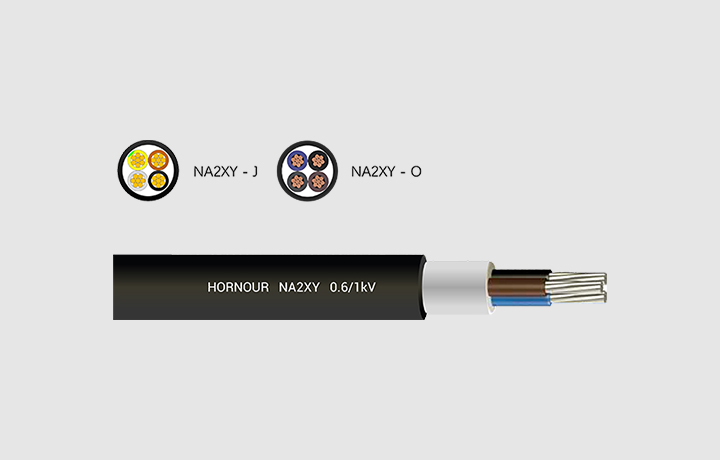

Halogen-Free XLPE Insulated 0.6/1 kV Power Cable
Cross-linked polyethylene insulation improves dielectric strength and thermal stability compared with conventional PVC insulation. This allows NA2XY cables to maintain reliable electrical performance in demanding power distribution environments.
Aluminum conductors significantly reduce cable weight and material cost, making NA2XY cables particularly suitable for infrastructure projects and long cable routes used in industrial facilities or utility installations.
Designed for stable low-voltage power transmission, NA2XY cables support modern electrical infrastructure where reliability, safety, and efficient installation are essential for contractors and system integrators.
| Description | Cross Section m㎡ |
OD of conductor mm | Thickness of Insulation mm | Thickness of Sheath mm | Cable overall diameter mm | Current Capaciy in air A | Alu weight kg/km | Cable weight kg/km |
|---|---|---|---|---|---|---|---|---|
| NA2XY 0.6/1(1.2)kV | 1 x 25 | 6.3 | 0.9 | 1.4 | 11.7 | 136 | 72.5 | 132 |
| NA2XY 0.6/1(1.2)kV | 1 x 35 | 7.1 | 0.9 | 1.4 | 12.5 | 166 | 101.5 | 166 |
| NA2XY 0.6/1(1.2)kV | 1 x 50 | 8.1 | 1 | 1.4 | 13.6 | 205 | 145 | 211 |
| NA2XY 0.6/1(1.2)kV | 1 x 70 | 9.7 | 1.1 | 1.4 | 15.5 | 260 | 203 | 283 |
| NA2XY 0.6/1(1.2)kV | 1 x 95 | 11.4 | 1.1 | 1.5 | 17.4 | 321 | 275.5 | 376 |
| NA2XY 0.6/1(1.2)kV | 1 x 120 | 12.7 | 1.2 | 1.5 | 19 | 376 | 348 | 456 |
| NA2XY 0.6/1(1.2)kV | 1 x 150 | 14.5 | 1.4 | 1.6 | 22 | 431 | 435 | 560 |
| NA2XY 0.6/1(1.2)kV | 1 x 185 | 15.9 | 1.6 | 1.7 | 23.9 | 501 | 536.5 | 697 |
| NA2XY 0.6/1(1.2)kV | 1 x 240 | 18.6 | 1.7 | 1.8 | 27 | 600 | 696 | 878 |
| NA2XY 0.6/1(1.2)kV | 1 x 300 | 20.7 | 1.8 | 1.9 | 29.5 | 696 | 870 | 1073 |
| NA2XY 0.6/1(1.2)kV | 1 x 400 | 23.5 | 2 | 2 | 32.9 | 821 | 1160 | 1347 |
| NA2XY 0.6/1(1.2)kV | 1 x 500 | 26.5 | 2.2 | 2.1 | 36.6 | 971 | 1450 | 1705 |
| NA2XY 0.6/1(1.2)kV | 1 x 630 | 30.2 | 2.4 | 2.2 | 41 | 1151 | 1827 | 2705 |
Download TDS
Yes. Send the exact cable designation and, where possible, the existing datasheet or project specification. We compare conductor material, construction, voltage rating, standards and the requirements that affect the installation before confirming whether an equivalent can be offered.
Send the exact requirement. The website does not represent every possible production combination. We will check whether the construction can be supplied and whether the required standards or certification scope also cover that version before it is quoted.
Requested drum lengths can be reviewed with the cable schedule. What is practical depends on cable dimensions and weight, total quantity, drum capacity and transport or site-handling limits, so the required lengths should be included with the enquiry.
No single MOQ applies across the entire range. The practical quantity depends on the cable type, size, construction, packing and production conditions. Send the actual cable list and quantities and we can confirm the applicable requirement for those items.
